SenseMaker: An Information-Exploration Interface Supporting the Contextual Evolution of a User's Interests

ABSTRACT

Keywords

© Copyright ACM 1997

INTRODUCTION

To illustrate some of these differences, we briefly consider three tasks. In Task 1, a user hopes to find the most recent book written by Italo Calvino. He will consider his task successfully completed once he locates this exact book. In Task 2, a user is interested in having fun by surfing through "cool" pages on the World Wide Web. Her criterion for success is the quality of the experience. Finally, in Task 3, a user needs to write a term paper for a class on Greek art. He will consider his task successfully completed if he can find a good topic and a collection of resources on that topic.

The interface presented in this paper has been designed for tasks like Task 3. We refer to these tasks as information-exploration tasks. More precisely, these are tasks in which users look for new information within a defined conceptual area. The overarching conceptual area may be at any level of granularity. For example, the conceptual area may be as broad as "graphical user interfaces" or as narrow as "the design of icons for the Star interface."

Three characteristics of the information-exploration task are particularly important to consider when designing interfaces for it. First, accumulating a collection of references helps the user to accomplish the end goal of discovering new information. Second, the user often needs to consult multiple, heterogeneous sources. For example, the Greek art student might consult indices of museum holdings as well as multiple book and article indices. Third, the evolution of a user's interests depends upon the changing characteristics of the information context. Much evidence for the context-driven evolution of a user's interests can be found in the literature. [1] observes that "each new piece of information [users] encounter gives them new ideas and directions to follow and, consequently, a new conception of the query." Similarly, [9] observes that from search session to search session, "our searchers used data from their present situation to determine where to go next." Both [1] and [11] draw an analogy between information exploring and foraging. People move from one information patch to another just as animals move from one food patch to another.

No interface can encode all possible aspects of a user's information context. The question is how to approximate it so that a user can more easily: (1) examine the current context, and (2) progress from one context to the next. We propose a lightweight approximation of information context as the current collection of references. The fact that accumulating references is important to the user suggests that this simple approximation will map easily onto the user's conceptual model.

In the rest of this paper, we describe SenseMaker, an interface for information exploration across heterogeneous sources. We begin with an overview of the current implementation, then illustrate how SenseMaker works through a detailed usage scenario. Next, we describe the SenseMaker design and underlying theory at a more abstract level and show how its novel features are applicable to the general information-exploration task. We conclude by discussing lessons learned from a pilot study.

SENSEMAKER IMPLEMENTATION OVERVIEW

SenseMaker is a WWW server implemented in ILU (the Xerox PARC object system implementation of CORBA) and Python. The SenseMaker back-end uses the Stanford Digital Library InfoBus [10] to communicate in a uniform fashion with service proxies that represent existing, autonomous services. A service proxy is an object that responds to a standard set of remote method calls by communicating natively with its associated service. InfoBus digital library services for which proxies have been developed include both search services and other information-related services. Search services used by SenseMaker include WWW search services (e.g., AltaVista), traditional bibliographic search services (e.g., Dialog), a map search service, and a video search service. We plan to add search services for local e-mail archives in the near future. Two non-search services that are important for SenseMaker are a full-text clustering service and a Computer Science term thesaurus service.

Communication between SenseMaker and the InfoBus search services is further facilitated by the InterOp protocol and the query translator. The InterOp protocol allows for asynchronous communication with the search services and for lazy materialization of the search results. The query translator [3] allows SenseMaker to issue queries that are phrased in a general Boolean front-end language. The query translator maps these uniform queries onto expressions that can be understood by each of the selected native search services. In cases where the native service does not have one of the front-end language capabilities, the mapping is guaranteed to return a superset of the desired results. Post-processing can then be used to prune the results as needed.

The SenseMaker front-end is based on dynamically generated HTML pages that make extensive use of JavaScript. This choice of implementation vehicle allows for rapid prototyping and development, but introduces some constraints to the design process. One constraint is that design decisions that reduce display speed or increase scrolling will hamper usability. Another is that the interface appearance is limited to a forms-based look and feel. Users interact with SenseMaker through the set of checkboxes, radio boxes, links, and buttons available through HTML forms. When supplemented with JavaScript's interactive capabilities, these widgets allow for a rudimentary form of progressive disclosure. However, the minimality of the widget set hinders more sophisticated interface designs. For example, SenseMaker is constrained to use the WWW browser's menu bar rather than creating its own.

SENSEMAKER USAGE SCENARIO

Preface

Scenario

Background

Initial Search

SenseMaker now sends Karen's query to all of the search services she requested. In the short period of time granted to SenseMaker by Karen, it will not find all possible matching results. This is what Karen wants. She is not ready to invest the cognitive effort required to assess all possible matching results. Furthermore, some of the search services she selected are monetarily expensive to access. Others can take a long time to return all matching results.

Viewing the Collection

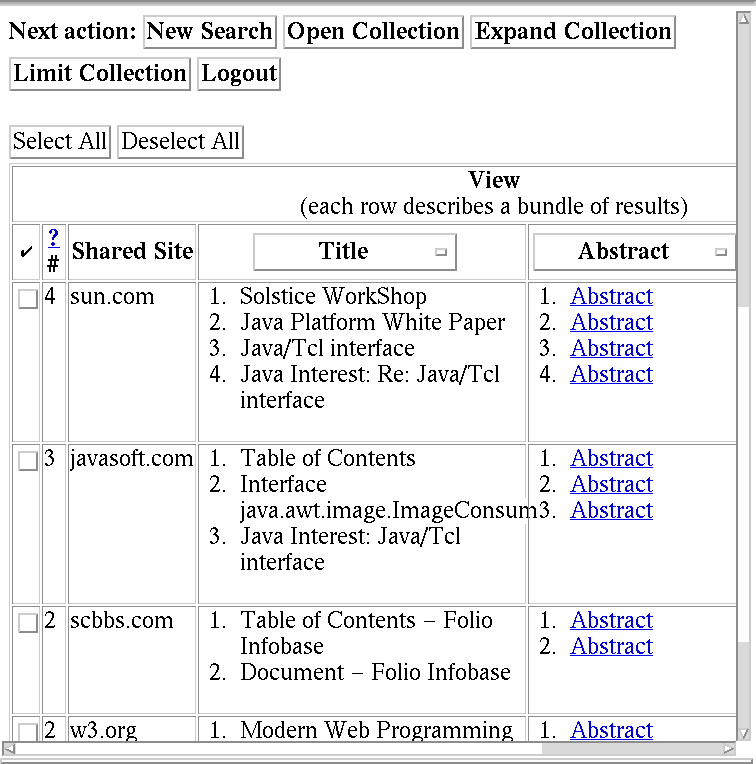

SenseMaker presents these bundles to Karen in a table. Figure 1 shows an excerpt of her URL-based view. Rows correspond to bundles of results, while columns correspond to attributes of the included results. Users can change, delete, and add columns, as well as determine how the table is sorted. [15] discusses these and additional techniques for browsing in a multicolumn tabular view.

Figure 1: URL-Based View of Results.

Expanding the Collection

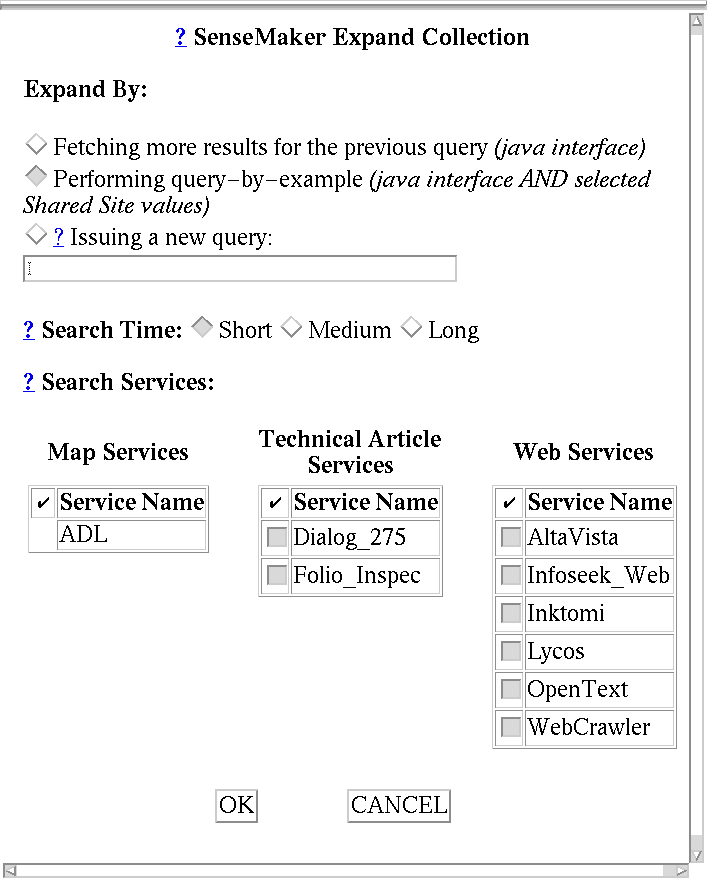

Figure 2: Expand Collection Window.

Karen chooses the query-by-example option and asks that SenseMaker look for these additional results not only in the original search services she specified, but in the remaining available WWW search services as well.

Duplicate Detection

Figure 3: View Controller. Clicking on a select widget reveals the possible settings for its associated parameter.

Limiting the Collection

Viewing the Collection

In this new view, a bundle of results labeled with the representative title "The Java(tm) White Paper: Introduction to Java" catches her eye. Looking inside the bundle at the included individual titles, she sees "The Java(tm) White Paper: Security in Java." Security is an important issue for Karen's team. When an inventory administrator performs an update on the shared inventory database, the inventory management system needs access to several of the administrator's local files. Karen needs to ensure that this would be possible in a Java interface. Her interest piqued, she follows the URL for this result and reads the paper.

Expanding the Collection Again

Viewing the Collection

Ending the Session

Discussion

What is clear about this evolution of interest is that it is fluid. Karen and other information explorers move from one area of interest to another based upon what they find along the way. The current information context, approximated in this case by the current collection of information references, plays a large role in determining what the user will do next. Furthermore, developing an understanding of the current context is not simple. In the usage scenario, Karen takes time at each step of the way to examine her current collection of references. Unfamiliar with the Java area, she needs to "make sense" of her accumulated results as she proceeds.

SENSEMAKER DESIGN FRAMEWORK

Examining the Information Context

Bundling has already been used successfully in innovative interfaces for exploring relational databases [4, 13] (where it is known as grouping or aggregation) as well as for browsing databases of full text [12] (where it is known as clustering). The concept of duplicate detection has also long been important in the relational database field. As shown in Table 1, the SenseMaker approach differs from most relational database and Information Retrieval (IR) clustering interfaces in the extent to which it allows users to determine how bundling and duplicate detection should be performed. In the next few sections we will argue that this user-centered design is valuable given what we know about user behavior.

Table 1: Differing Assumptions about how bundling and duplicate detection are performed

	SenseMaker	Relational Database Interfaces	IR Clustering Interfaces
View type	User specified	User specified	Text
Bundling criterion	User specified	Attribute value equality	Statistical text analysis
Identity criterion	User specified	Key equality	Identical text

View Types

Bundling

Examples of using different bundling criteria can be found in our scenario. Initially, Karen had a URL-based view that bundled together results with URLs referring to the same Internet site. Later on, she switched to a title-based view that bundled together results with similar title values. As these examples show, users find different bundling strategies useful at different times. Relational database languages, with their built-in and oft-used constructs for grouping by attribute equality, also give strong evidence for this need.

Duplicate Detection

As examples, consider three different users performing different tasks. User A is doing a survey of a particular area (much like Karen). She considers results with identical title values to be duplicates. User B is trying to see how well indexed a particular item is. He considers results with identical titles to be unique items, as long as they come from different search services. Finally, User C is checking to see if there have been copyright infringements on a particular work. She considers results with identical full texts to be duplicates, regardless of their title values.

Progressing from One Information Context To the Next

Expand Actions

• Expand by issuing a query-by-example. In the usage scenario, Karen initially gave SenseMaker the keyword query java interface. She then looked at her results through a URL-based view that bundled together results whose URL values refer to the same Internet site. She decided the sun.com and javasoft.com bundles were particularly interesting and asked SenseMaker to find more results that both satisfied her original query and that had URLs that referred to these two Internet sites.

  We label this strategy for expanding a collection query-by-example. Karen is able to specify how the collection should be expanded simply by asking that two bundles serve as examples of what she needs. The Expand Collection window makes it clear to Karen how her action is interpreted by articulating that the query specification issued by SenseMaker will be: java interface AND selected Shared Site values.

  In the SenseMaker framework, two styles of query-by-example are possible. The action requested by Karen illustrates one such style. The results to be added to the collection must both satisfy the original query and share the defining characteristic of the example bundles.

  In the second style of query-by-example, the results to be added to the collection are no longer required to satisfy the original query. This is useful for the user whose interest has evolved to the extent that it is now unrelated to the original query. For example, consider a user who has issued a query specifying a particular subject. After viewing the matching results through an author-based view and reading a few abstracts, the user might become interested in the perspective offered by one or two specific authors. In that case, the user might wish to find out what else those authors have written, independent of the particular subject named in the original query. A simple way to do this is through a query-by-example action whose results are not constrained to match the current query.

  The SenseMaker query-by-example is novel, but is related both to the relational database concept of query-by-example [13] and to the IR concept of interactive relevance feedback [5]. In a typical relational database query-by-example scenario, a user interacts with a tuple visualizer to give a partial specification of the tuples to be found. SenseMaker query-by-examples are different in that the user gives full instantiated representatives of what is to be found. The user relies upon SenseMaker to formulate the corresponding partial specification.

  In a typical relevance feedback scenario, a user interacts with the system by identifying which of the initially returned documents are relevant. The system then retrieves documents that are statistically similar to these documents. In our framework, relevance feedback can be viewed as a SenseMaker query-by-example action in which the examples are the full texts of individual results rather than bundles of results. What is novel about the SenseMaker action is that it gives the user the option of specifying bundle-level characteristics, not just document-level characteristics, as the grounds for finding additional references.

• Expand by asking for related references. In query-by-example actions, results are added to the collection if they are similar to the given examples. A variation on query-by-example is to add results if they stand in a defined relation to the given examples. In [7], these relations are understood as growth sites in the information landscape. We call the type of expand action that relies upon these relations a related-reference query.

  We illustrate this strategy with a few examples. (1) A user is looking at results that come from technical article search services through a view that bundles together results referring to the same author. A related-reference query might add in results that are by the selected authors' colleagues. (2) A user is looking at results through a view that bundles together results referring to works on the same topic. A related-reference query might add in results that are on topics similar to the selected topics. (3) A user is looking at individual results. A related-reference query might add in results that are cited by (or that cite) the selected individual results.

  The above examples of related-reference queries illustrate the importance of having an architecture that allows SenseMaker to consult with external sources. For example, to find results that cite the selected results, SenseMaker might first check with a citation index such as the Science Citation Index. The feasibility of such an approach is demonstrated in [7], which describes an interface that takes the current set of documents and presents the associated citation information in a novel way.

• Expand by issuing a new or refined query. In the scenario, Karen moved from specifying her interest as java interface to specifying it as java security. However, she did not want to lose sight of the references already found through the java interface query. Thus, she found it useful to expand the collection by issuing a new query, the results of which were added to her current set of results. This is different from launching a new search because Karen can see the new results integrated with her old results.

  SenseMaker can assist the user in formulating the new query by providing suggestions for refining the previous query. Currently, SenseMaker makes suggestions by consulting with an external service that lists synonyms, and then allowing the user to refine the query to include these synonymous terms.

• Expand by enlarging the scope of the previous query. This final expand action is one that is found in many current search interfaces. Having received results for a particular query, the user is able to ask for more results for that query. The slight wrinkle added here is the ability to extend the query to new search services at this point.

Limit Actions

• Limit by focusing on selections. At one point in the usage scenario, Karen limits her collection to just the sun.com and javasoft.com bundles. This action illustrates limiting by focusing on selections. The user determines how the collection should be limited by explicitly indicating which bundles (or individual results) should be kept.

• Limit by issuing a query over the current collection. An alternative way to limit a collection is to issue a filter query over it. For example, a user might decide to limit a collection to just those results that are post-1995.

Replace Actions

Expand, Limit, and Replace Actions in the Interface

Returning to Previous Information Contexts

In the SenseMaker framework, returning to a context is equated with returning to an earlier collection of information references. In an information-exploration task, the number of collections created can grow to be quite large. To facilitate browsing through the list of created collections, SenseMaker provides the user with the day/time at which the collection was created, a brief description of how it was created, and a user-provided label if one is available. Figure 4 shows what a list of created collections looks like to the SenseMaker user.

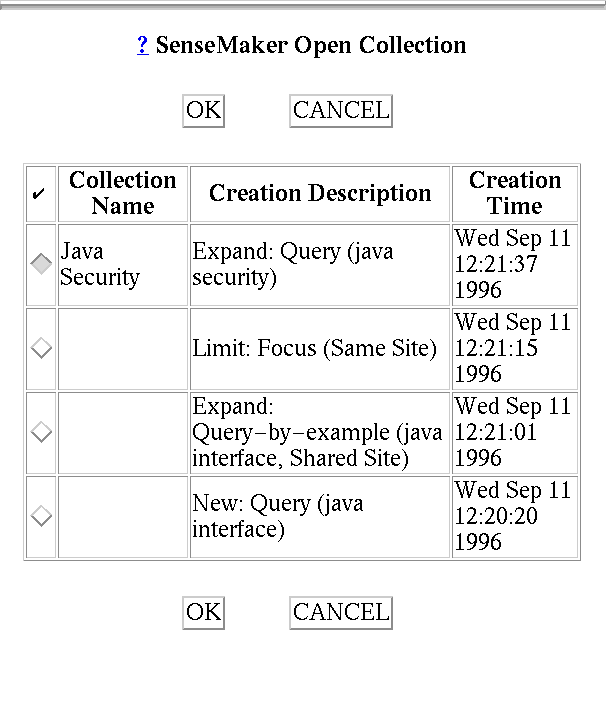

Figure 4: Open Collection Window.

SENSEMAKER PILOT STUDY

Participants in the Stanford Digital Library project include librarians, HCI researchers, database researchers, and Artificial Intelligence researchers. These participants fit our target user profile. Ongoing feedback from project members has led us to develop new versions of on a regular basis. However, these interactions have not been sufficient to answer the question of how well the various SenseMaker features work in practice. To answer that question will require a rigorous set of user studies. In this paper, we present a pilot study initiated to gain a preliminary sense for how users respond to the system and to pave the way for future studies.

Pilot Study Part I

Description

Version 1 of SenseMaker was the interface described in this paper. Version 2 was a baseline system developed for comparison purposes. It is similar to other existing systems that allow users to access multiple search services (e.g., [14]). Specifically, Version 2 limited users to just one default view of the accumulated results. Within that view, results were listed individually (exactly as they would have appeared in a Version 1 view that had bundling turned off). Furthermore, in Version 2 the only permissible actions after viewing a collection were: (1) Start a new search; or (2) Get more results for the current search.

Written instructions for each task informed the subjects that they were about to write a term paper on a topic of their choice for a graduate level seminar (a cryptography seminar for Task 1 and a neural networks seminar for Task 2). The subjects were then given 15 minutes in which to determine the specific topic and to write down the titles of one or two promising references. Subjects were limited to references that could be found by using the interface directly.

Lessons

Two subjects mentioned explicitly that they found the limit feature useful because it helped them to pare their collection down. One user articulated a need for the second style of query-by-example (not included in the current implementation). All of the users noted that they liked having the ability to return to previous collections, even though they did not have time to do so during the 15-minute time period.

Table 2: Version 1 Collection Action Percentages.

	User 1	User 2	User 3	User 4	User 5
Replace/New Query	25%	50%	25%	56%	17%
ExpandMore	25%	25%		22%
Expand/New Query	25%		13%	22%	33%
Expand/QBE	25%		13%
Limit/Focus		25%	37%		50%
Return			13%
Total # Actions	8	4	8	9	6

Table 3: Version 2 Collection Action Percentages.

	User 1	User 2	User 3	User 4	User 5
Replace/New Query	82%	100%	82%	80%	100%
ExpandMore	18%		18%	20%
Total # Actions	11	3	11	5	5

In the follow-up interviews, users expressed uncertainty about the value of bundling. Several mentioned that they did not have enough time to try changing views, and that changing views was not necessary for the small number of results they accumulated. Thus, we could not get a sense of the value of changing views or of query-by-example (which relies upon bundles). We initiated Part II of the study to focus explicitly on views.

Pilot Study Part II

Description

In each view, results were presented in an HTML table, just as they are in the SenseMaker interface. Columns corresponded to title, author, and URL. In View 1, each row corresponded to a single result. In Views 2 and 3, each row corresponded to a bundle of results, where bundling was by same author for View 2 and by same site for View 3.

Subjects looked at each collection view for two minutes (view order was determined randomly, but stayed the same for the two collections). After each view, subjects reported their impressions of the collection. After finishing with each collection, subjects were asked to rate the views for usefulness on a scale of 1-10 and to describe what they found useful about each view.

Lessons

CONCLUSIONS AND FUTURE WORK

In Part I of our SenseMaker pilot study, subjects did in fact use the expand and limit actions to progress from one context to the next. In Part II, subjects had different opinions about which view was most informative. Accordingly, Part II supports the idea that users should be able to obtain different views of their collections.

Our pilot study has suggested areas for future work and more rigorous study. Most users in Part I reacted favorably when asked about some of the action possibilities that were discussed in this paper but not yet implemented. In the next version of SenseMaker, we will incorporate these actions. Also in response to user feedback, we plan to implement a Java-based graphical version of the interface. In terms of future studies, we plan both to perform studies that allow more careful evaluation of individual aspects of the interaction and to perform a second version of Part I with more subjects, each of whom will spend a longer period of time interacting with SenseMaker.

ACKNOWLEDGMENTS

Steve Cousins and Andreas Paepcke gave us insightful comments on early drafts of this paper. Scott Hassan's contributions to the Digital Library project infrastructure and Kevin Chang's development of the query translation module made the implementation of SenseMaker possible.

REFERENCES

1. Bates, M.J. The design of browsing and berrypicking techniques for the online search interface. Online Review 13, 5 (October 1989), 407-24.

2. Belkin, N., Cool, C., Stein, A., and Thiel, U. Cases, scripts, and information-seeking strategies: on the design of interactive information retrieval systems. Expert Systems with Applications 9, 3 (1995), 379-395.

3. Chang, K., Garcia-Molina, H., and Paepcke, A. Boolean query mapping across heterogeneous information sources. IEEE Transactions on Knowledge and Database Engineering 8, 4 (August 1996), 515-521.

4. Goldstein, J., and Roth, S. Using aggregation and dynamic queries for exploring large data sets, in Proceedings of CHI '94 (Boston MA, April 1994), ACM Press, 23-29.

5. Koenemann, J., and Belkin, N. A case for interaction: a study of interactive information retrieval behavior and effectiveness, in Proceedings of CHI '96 (Vancouver Canada, May 1996), ACM Press, 205-12.

6. Levy, D. What do you see and what do you get? Document identity and electronic media, in Screening Words: User Interfaces for Text, Proceedings of the Eighth Annual Conference of the UV Centre for the New OED and Text Research (Waterloo Canada, 1992), 109-117..

7. Mackinlay, J.D., Rao, R., and Card, S. An organic user interface for searching citation links, in Proceedings of CHI '95 (Denver CO, May 1995), ACM Press, 67-73.

8. Mann, T. Library Research Models: A Guide to Classification, Cataloging, and Computers. Oxford University Press, New York, 1993.

9. O'Day, V., and Jeffries, R. Orienteering in an information landscape: how information seekers get from here to there, in Proceedings of INTERCHI '93 (Amsterdam, April 1993), ACM Press, 438-445.

10. Paepcke, A., Cousins, S., Garcia-Molina, H., Hassan, S., Ketchpel, S., Röscheisen, M., and Winograd, T. Using distributed objects for digital library interoperability. IEEE Computer Magazine 29, 5 (May 1996), 61-68.

11. Pirolli, P., and Card, S. Information foraging in information access environments, in Proceedings of CHI '95 (Denver CO, May 1995), ACM Press, 51-58.

12. Pirolli, P., Schank, P., Hearst, M., and Diehl, C. Scatter/Gather browsing communicates the topic structure of a very large text collection, in Proceedings of CHI '96 (Vancouver Canada, May 1996), ACM Press, 213-20.

13. Sawyer, P., and Mariani, J. Database systems: challenges and opportunities for graphical HCI. Interacting with Computers 7, 3 (1995), 273-303.

14. Selberg, E., and Etzioni, O. Multi-service search and comparison using the MetaCrawler, in Proceedings of the Fourth International World Wide Web Conference (Boston MA, December 1995). Full text.

15. Wake, W., and Fox, E. SortTables: A browser for a digital library, in Proceedings of the Fourth International Conference on Information and Knowledge Management (Baltimore MD, December 1995), 175-81.
